BCG-BMW DQI implementation

End-to-end Qiskit implementation of Decoded Quantum Interferometry (DQI) applied to industrial integer linear programs (ILPs), with a focus on automotive option-packaging problems.

This repository accompanies the paper “Towards Solving Industrial Integer Linear Programs with Decoded Quantum Interferometry” (arXiv:2509.08328). It provides a full quantum-circuit realization of DQI, including a quantum version of belief propagation for decoding LDPC codes, and a pipeline that maps ILPs to MAX-XORSAT instances suitable for DQI-based optimization.

DQI uses quantum interference to bias sampling toward high-value solutions and reframes the optimization problem as a decoding task over sparse parity-check codes. In this implementation, decoding is performed coherently on the quantum state via a quantum binary belief-propagation decoder before measurement.

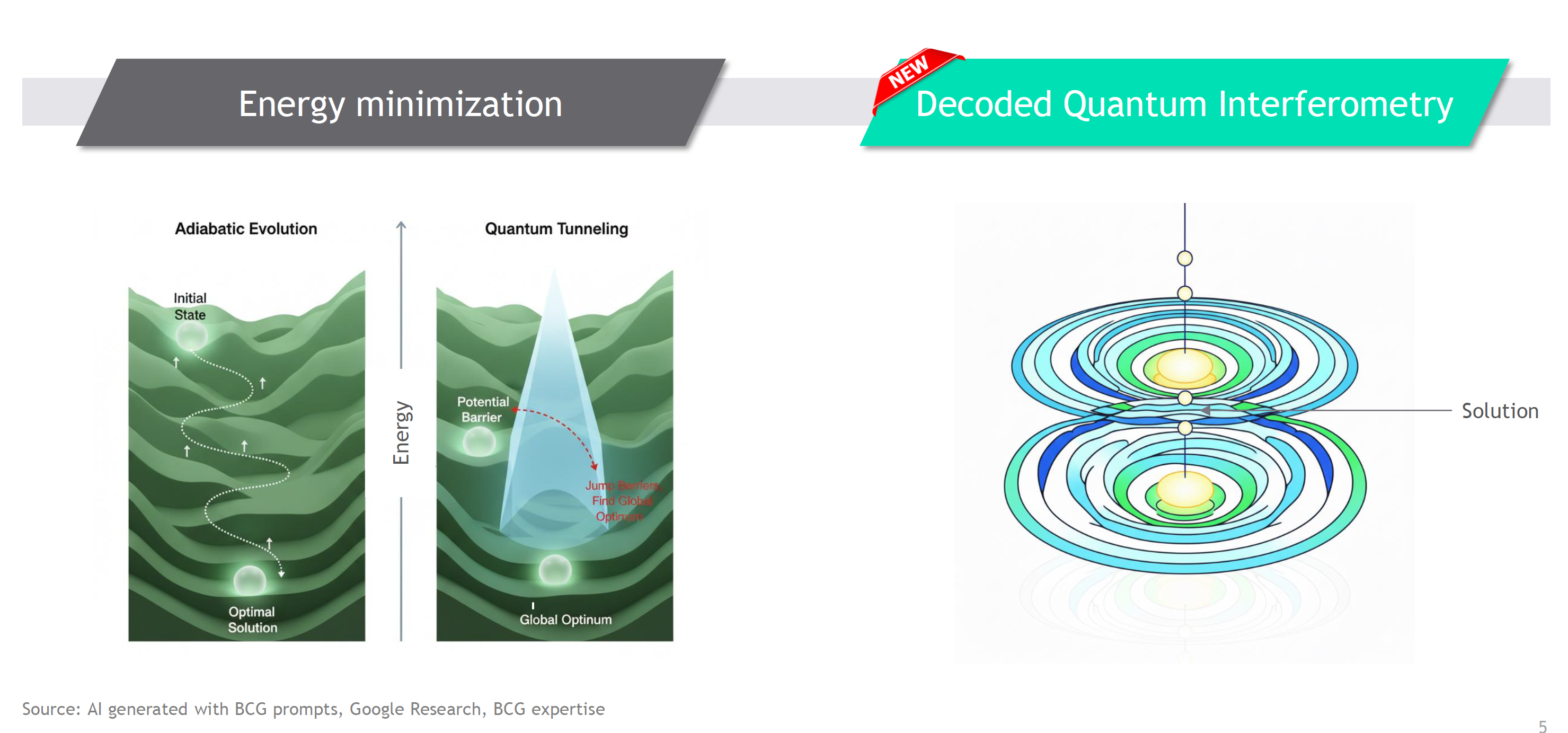

Why DQI: conceptual illustration of quantum interference optimization — Conceptual illustration: how quantum interference in DQI biases toward optimal (or near-optimal) solutions.

1. Overview & Use Cases

This project demonstrates how DQI, combined with a quantum belief-propagation decoder, can be used to tackle real-world combinatorial optimization tasks derived from ILPs, such as packaging problems for automotive configurations. The code supports:

A pipeline from industrial ILPs to MAX-XORSAT instances.
A detailed quantum-circuit implementation of the DQI algorithm, including a quantum binary belief-propagation decoder.
Benchmarks against classical Gurobi solvers and random sampling baselines.
Resource estimation (qubits, gates, depth) to study scaling and hardware feasibility.

Example use cases

Automotive option-packaging / configuration optimization (e.g. constraints, preferences, and dependencies between options).
General combinatorial optimization problems that can be reduced to MAX-XORSAT instances.
Research on quantum-enhanced decoding and quantum-classical hybrid optimization strategies using DQI.

Environment setup

We recommend using a dedicated conda environment:

conda create -n dqi_env python=3.11
conda activate dqi_env
pip install -r requirements.txt

Optional: if GPUs are available, you can upgrade JAX to a CUDA-enabled build, for example:

pip install --upgrade "jax[cuda12]"

Some experiment scripts (e.g. experiment_empirical_vs_analytic.py, experiment_performance_resources.py) contain a commented line os.environ["CUDA_VISIBLE_DEVICES"] = "0" that can be uncommented to target a specific GPU.

2. Implementation Architecture & Logical Mapping

The implementation maps the DQI methodology into a full pipeline using Qiskit. It combines problem encoding, DQI state preparation, coherent quantum belief-propagation decoding, interference, measurement, and classical post-processing.

Logical mapping of DQI implementation pipeline — Logical map of the implemented pipeline: ILP → MAX-XORSAT → quantum DQI encoding & decoding → measurement → solution extraction.

Supported Flow

Define optimization problem (e.g. packaging constraints) and map to a MAX-XORSAT-style instance.
Use Qiskit to build the quantum circuit for DQI state preparation, coherent Belief Propagation decoding, and interference.
Measure the quantum state to obtain bit-strings (syndromes / candidate solutions).
Post-process & verify solutions, optionally iterate for improved results or sampling.

3. Running Experiments & Pipelines

All numerical experiments from the paper are implemented as Python modules under the pipelines directory. To reproduce them, run:

python -m pipelines.experiment_empirical_vs_analytic
python -m pipelines.experiment_histogram_small_max_xorsat
python -m pipelines.experiment_performance_resources
python -m pipelines.experiment_success_rates_2d_plots

Each script generates data (e.g. success rates, histograms, resource estimates) and plots that correspond to the figures and analyses in the paper.

Advanced usage: synthetic package data & ILP generation

The repository also includes tools to generate synthetic automotive data and build ILP instances that can be fed into the DQI pipeline.

1) Vehicle generation

python synthetic_data_generation/generate_vehicles.py \
  -N 1000 \
  --input_dir synthetic_data_generation/data \
  --output_file synthetic_data_generation/data/test_vehicles.csv

2) Take-rate data building

python synthetic_data_generation/build_package_take_rate_data.py \
  --families_file synthetic_data_generation/data/families.csv \
  --options_file synthetic_data_generation/data/options.csv \
  --vehicles_file synthetic_data_generation/data/test_vehicles.csv \
  --template_file synthetic_data_generation/package_templates.yaml \
  --output_file pipelines/data/take_rates.parquet \
  --output_format parquet

3) Creating an ILP instance

python pipelines/compute_milp_formulation.py

This produces an ILP instance (stored, for example, in pipeline/data/milp_formulation.json) that can subsequently be converted to MAX-XORSAT and used in the DQI experiments.

4. Scaling, Observations & Future Research Directions

The implementation is used to study how DQI-based decoding behaves as problem sizes grow, both on realistically sized industrial instances and on controlled synthetic benchmarks. The experiments explore solution quality, success rates, and quantum resource requirements across different decoding depths and decoder variants.

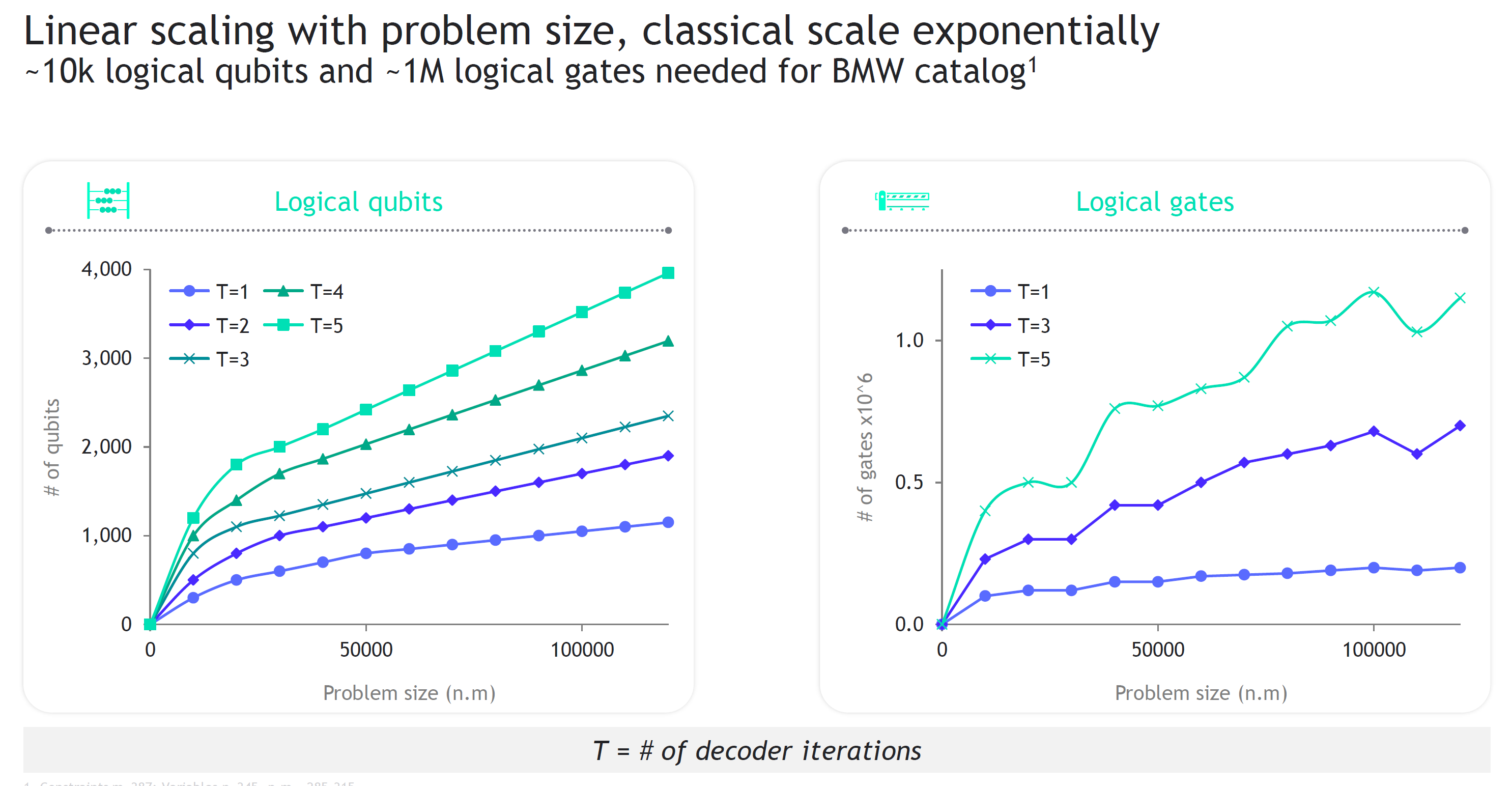

Scaling results and proposed future research areas — Empirical scaling results & proposed research / improvement areas for larger problem instances.

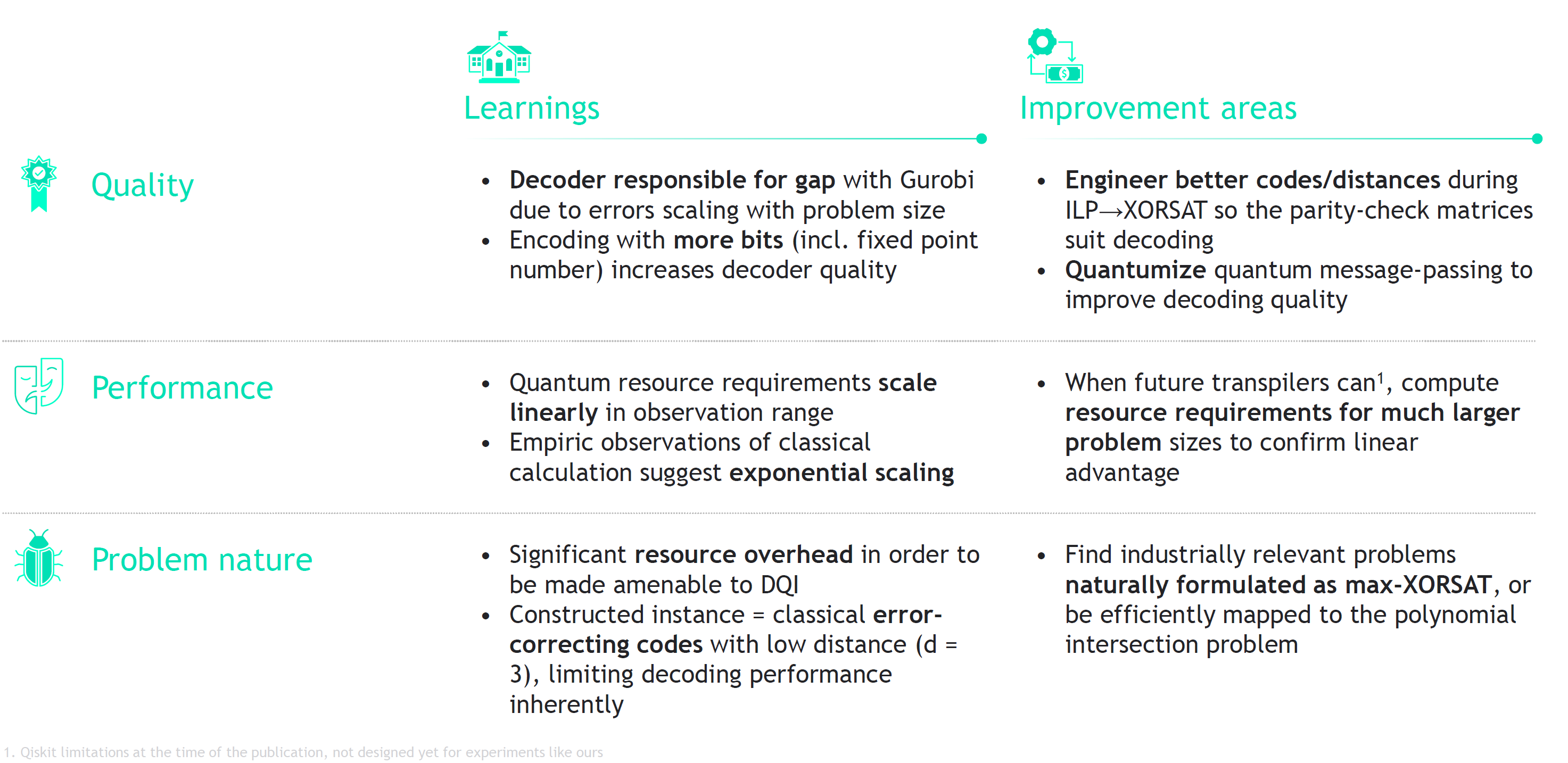

Suggested Future Improvements & Research Directions

Improve the quantum implementation of state of the art classical decoding algorithms (or integrate quantum native decoders) to handle larger / denser instances more reliably.
Optimize quantum circuit depth / gate count to better suit near-term quantum hardware or simulators.
Extend problem mapping beyond MAX-XORSAT — support other combinatorial formulations relevant to industrial constraints (e.g. mixed constraints, soft constraints, preferences).
Provide benchmarking suite to compare DQI-based solutions against classical solvers on industrial-scale problems (both in quality and runtime).

Usage Example

To reproduce one of the core experiments from the paper (for example, comparing empirical quantum simulations with analytic predictions), run:

python -m pipelines.experiment_empirical_vs_analytic

Other experiments can be invoked analogously by replacing the module name, e.g. experiment_histogram_small_max_xorsat, experiment_performance_resources, or experiment_success_rates_2d_plots.

License

This project is released under the Apache-2.0 License.

Authors / Contact

Francesc Sabater, Ouns El Harzli, Geert-Jan Besjes, Marvin Erdmann, Johannes Klepsch, Jonas Hiltrop, Jean-François Bobier, Yudong Cao, and Carlos A. Riofrío.

Reference

Francesc Sabater, Ouns El Harzli, Geert-Jan Besjes, Marvin Erdmann, Johannes Klepsch, Jonas Hiltrop, Jean-François Bobier, Yudong Cao, and Carlos A. Riofrío. “Towards Solving Industrial Integer Linear Programs with Decoded Quantum Interferometry.” arXiv preprint arXiv:2509.08328, 2025.
